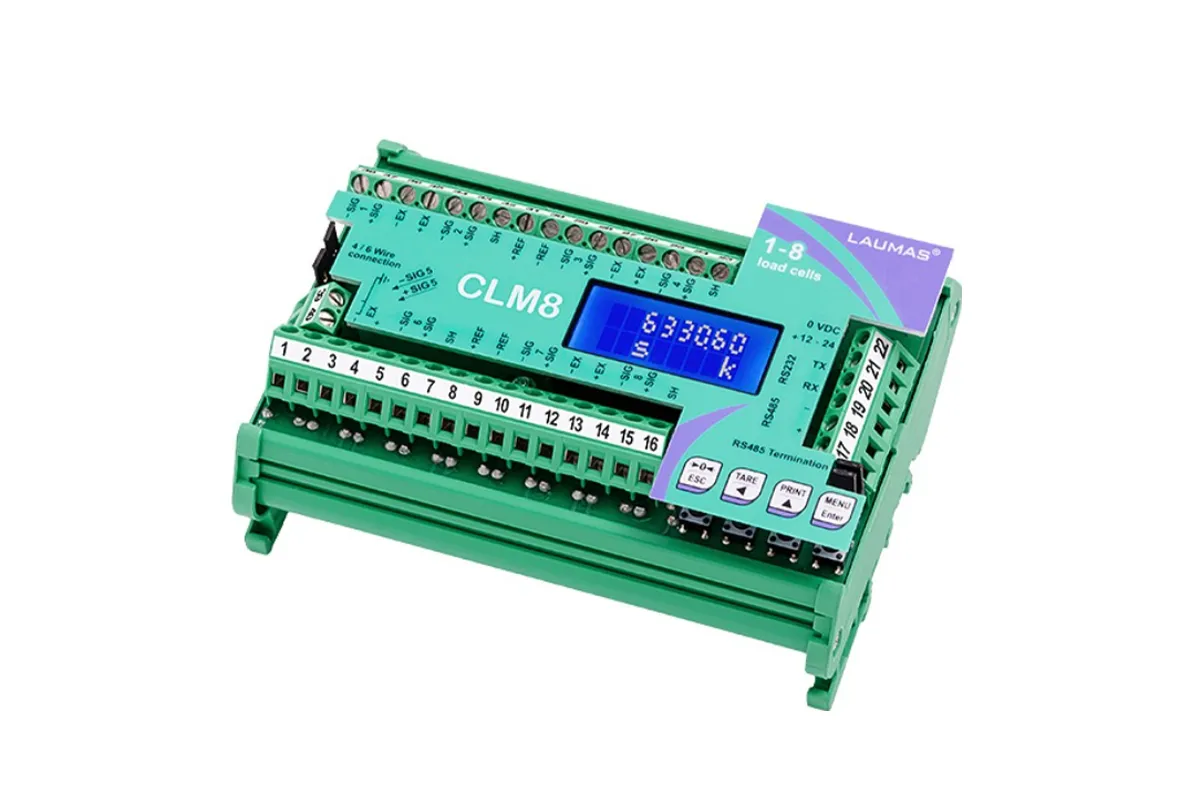

CLM8
CLM8
Smart junction boxes with backlit LCD display, 38×16 mm, two lines x eight digits (5 mm height). Four-key keypad for system calibration. Lightning and electric shock protection device.
The CLM8 series offers the benefits and performance of an advanced digital weighing system even when using analog load cells. 8 independent reading channels for load cells. Digital balancing. Automatic diagnostics.
Marka
ÜRÜN AÇIKLAMASI
Ethernet TCP/IP port for remote management (can be connected via web to your PC, smartphone, tablet, etc.). RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)OIML R76:2006 approved, class III, 3×5000 divis. 0.4 μV/VSI
Available versions:
- IP67 stainless steel box: 200x148x45 mm; 8+2 cable glands – plug. IP67 polycarbonate box: 170x140x95 mm; 4/8+2 cable glands – plugs, 4+2 PVC end fittings.
- Omega/DIN rail mounting version: 125x92x52 mm.
- Card only: 151x72x30 mm.
- 8-channel A/D converter – 24 bit (16000000 dots) 4.8 kHz
- Display range 99999999
