T61
T61

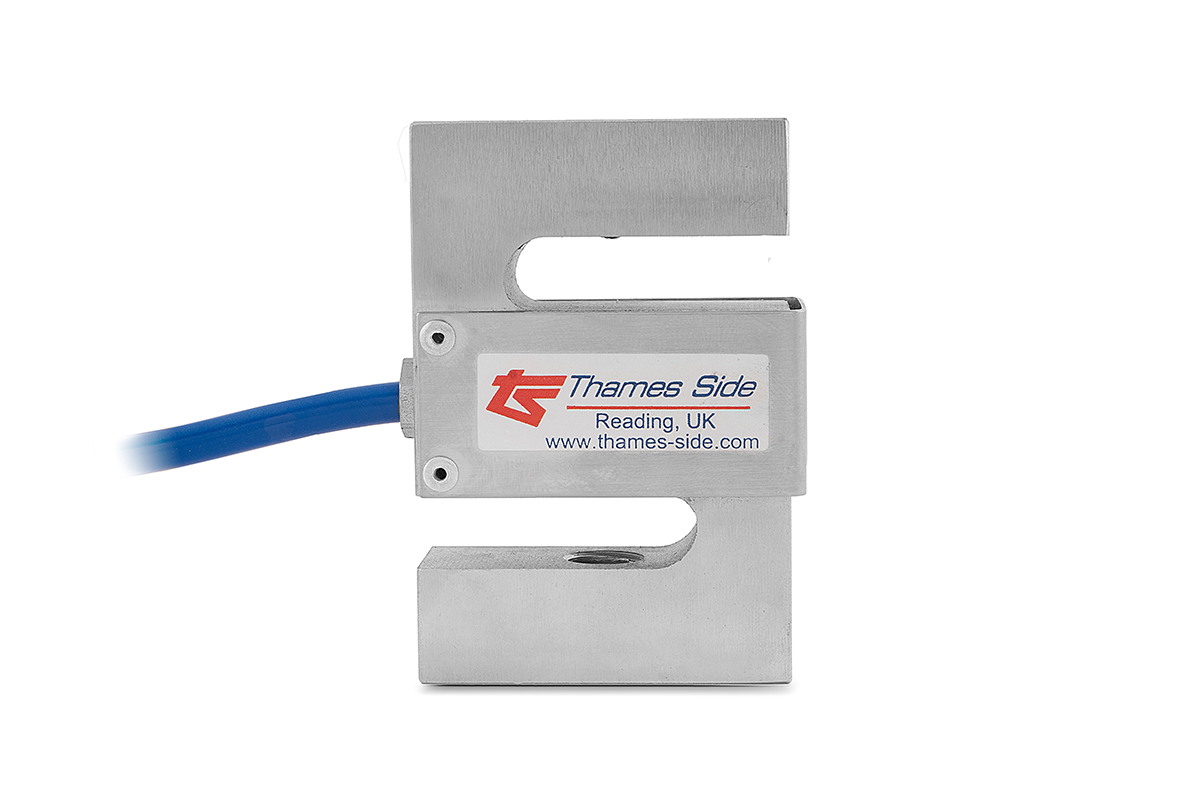

The T61 S type load cell is manufactured from high quality alloy steel and features IP67 sealing. Its low cost and capacity range of 50 kg-1000 kg make it a versatile solution for a variety of applications. The durable polyurethane cable offers high resistance to shocks/ cuts, chemicals and UV radiation.
Although normally used in tension applications, it can be used under pressure or bidirectional (static) with suitable adapters in the right application. Not suitable for dynamic use with zero load. Various tension bar end bearings are available for easy connection to the weighed structure, e.g. to a suspended hopper.
Marka
ÜRÜN AÇIKLAMASI
Key Features:
- Capacity range: 50 kg-1000 kg
- High quality nickel plated alloy steel, corrosion resistant
- Fully encapsulated and sealed according to IP67
- 3 mV/V sensitivity and 4-wire connection
- Can be used in tensile or compression (not suitable for dynamic use from scratch)
- Optional high temperature version for use up to +150 °C
- Polyurethane cable
- 3 year warranty
