T66
T66

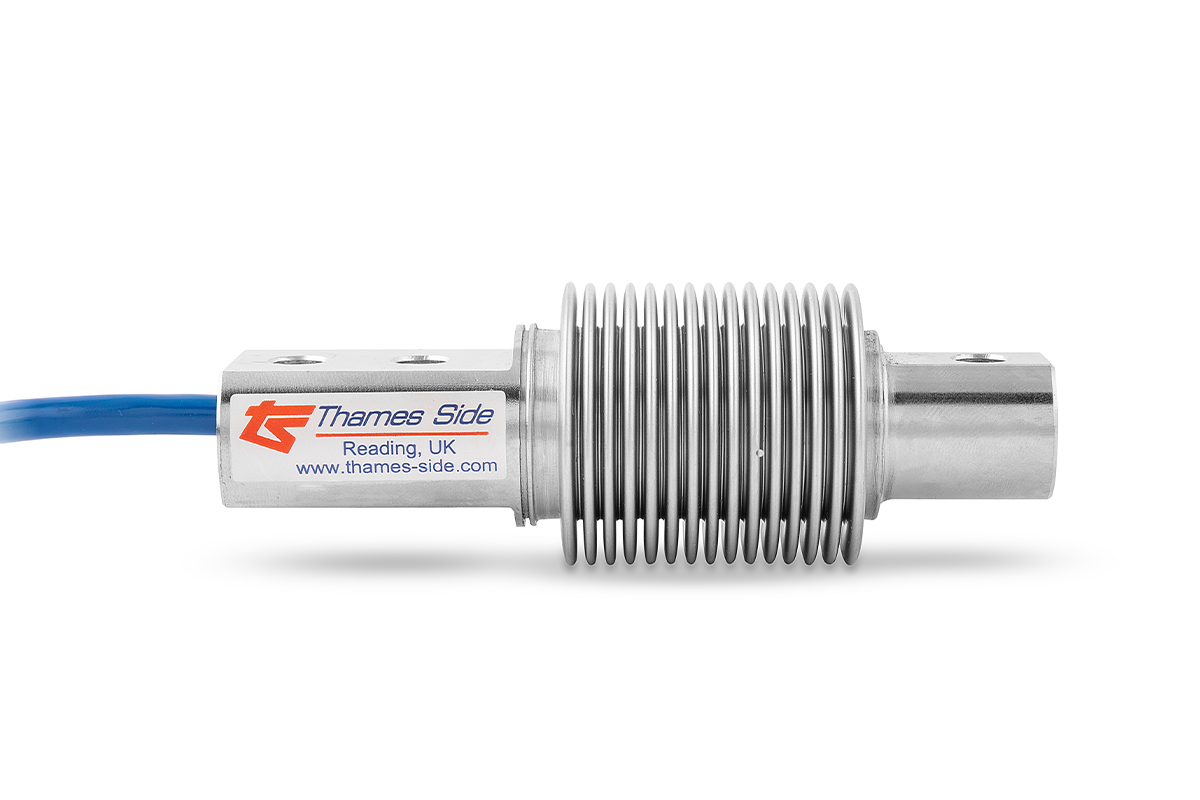

The T66 high precision stainless steel bending beam is a world-class load cell and is widely used in industrial weighing applications. With OIML approval, it offers extremely high precision and withstands harsh production environments.
OIML approval up to 3000 compartments (C3) or 6000 compartments (C6) and ATEX approval for use in hazardous areas where there is a risk of explosion. Its certification for dust zones 20, 21 and 22 does not require the use of safety barriers. The load cell comes standard with a 6-wire configuration (with sensing wires). An optional 4-wire version is also available on request (OIML C3 only).
Marka
ÜRÜN AÇIKLAMASI
The most common end-uses are in the Food Processing, Pharmaceutical, Chemical and Mass Transportation industries in applications such as high precision tank weighing, platform scales, packaging and filling machines, belt scales and mobile conveyors.
Key Features:
- Fully welded and hermetically sealed stainless steel construction with IP68/IP69K protection class
- Complies with OIML R60 regulations for scales up to 3000 divisions (C3) or 6000 divisions (C6) according to EN 45501
- Nominal capacities: 5 kg, 10 kg, 20 kg, 30 kg, 50 kg, 75 kg, 100 kg, 150 kg, 200 kg, 250 kg, 300 kg, 500 kg
- Capacities (C6 version): 50 kg, 75 kg, 100 kg, 150 kg, 200 kg, 250 kg
- 6-wire (with sensing wires) configuration as standard
- Wide operating temperature range: -30 °C to +70 °C
- Options Parylene coating for the load cell when used in extremely harsh environments and also a version for high temperature use
Typical applications:
- Platform scales
- Big bag (FIBC) filling
- Belt scales
- Tank weighing
- Filling and packaging machines
- Mobile conveyors
