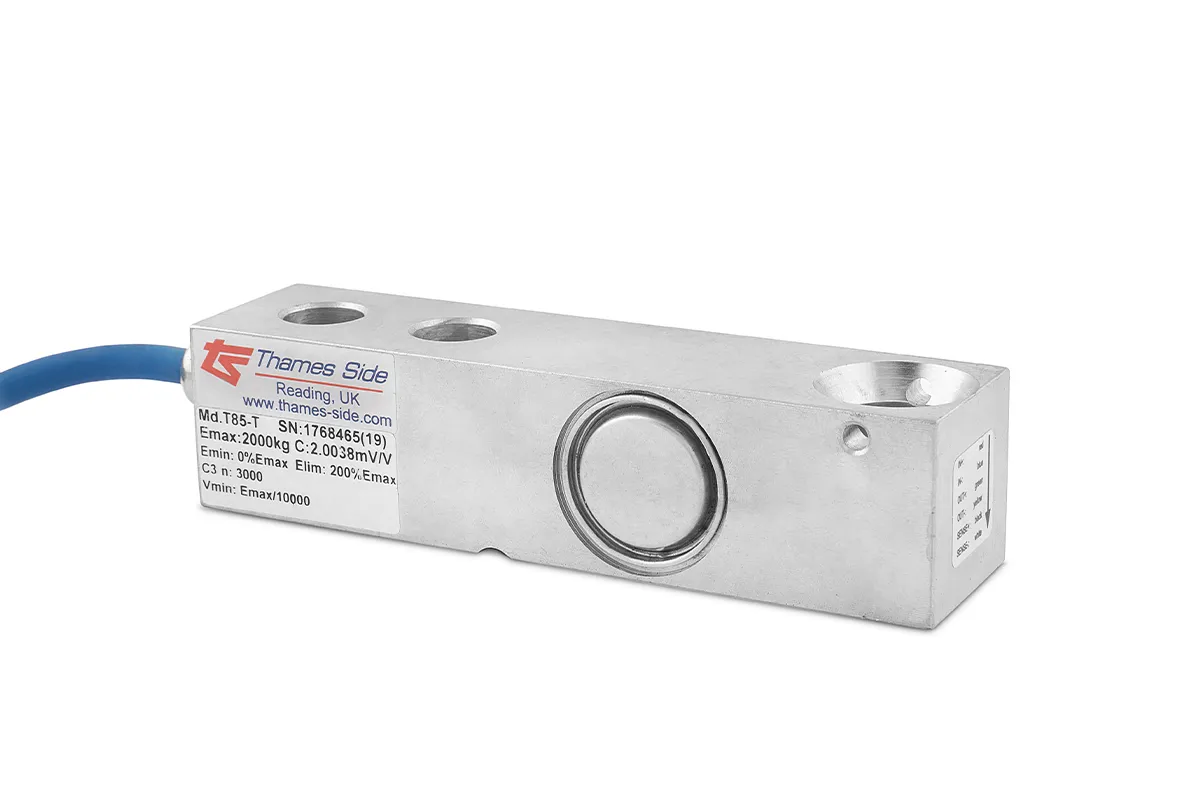

The T85-T is a high accuracy load cell for industrial weighing applications, but is primarily suitable for platform scales due to its low height and blind loading hole that optimally introduces the load into the shear beam. It has OIML C3 approval (this is required for trade-legal platforms). It can withstand harsh operating environments thanks to its fully welded and hermetically sealed design (IP68/IP69K).
To minimize corner correction (installation and setup time), the T85-T load cell features optimized corner presetting calibrated in mV/V/Ohm with output current matching at ±0.05%.
Marka
ÜRÜN AÇIKLAMASI
The T85-T has ATEX approval for use in hazardous areas where there is a risk of explosion. It is ATEX certified for gas zones 20, 21 and 22, which do not require the use of safety barriers.
- Fully welded and hermetically sealed stainless steel construction with protection class IP68/IP69K
- Conforms to OIML R45501 regulations up to 3000 divisions (C3) according to EN 60
- Nominal capacities: 300kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg
- Calibrated in mV/V/Ohm
- Wide operating temperature range: -30 °C to +70 °C
- ATEX approval – for all Gas and Dust zones
