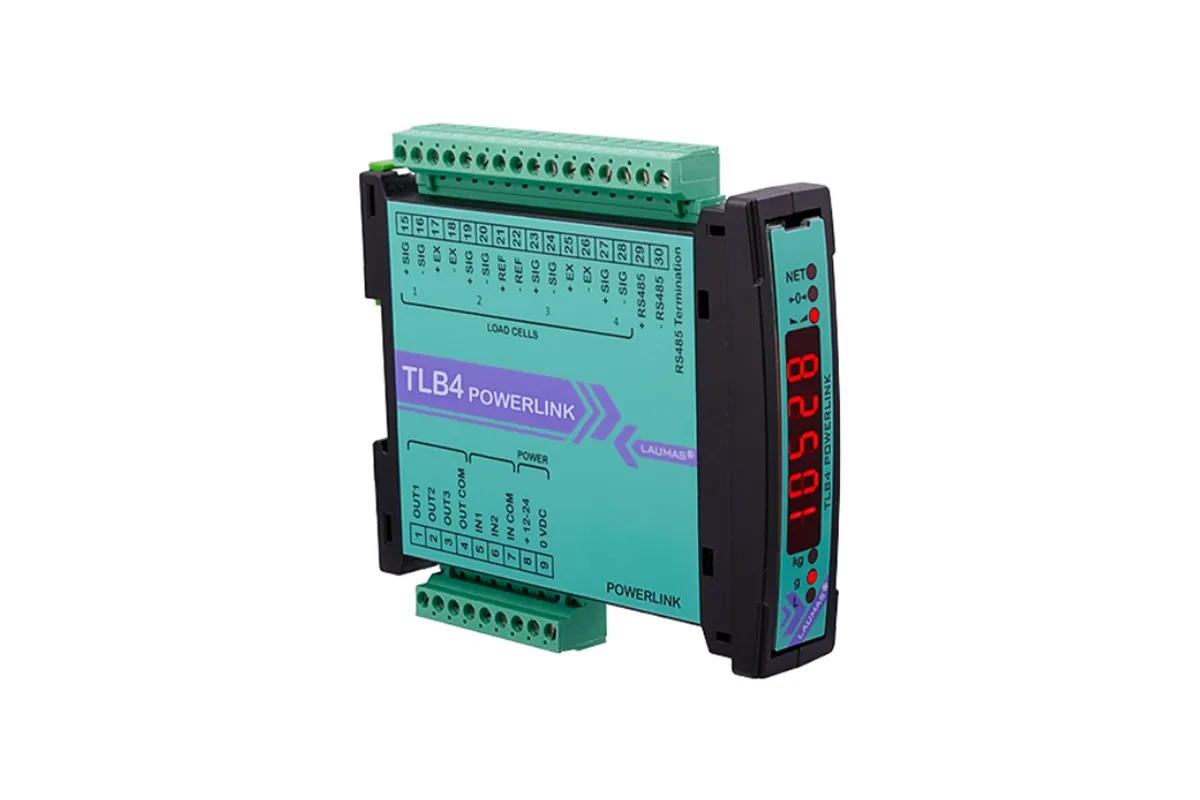

TLB4 Power Link

Weight transmitter/indicator with six-digit red LED display (8 mm height). Space-saving compact design. Four buttons for system calibration. Six indicator LEDs. Dimensions: 26 x 115 x 120 mm.

4 independent reading channels for load cells (individual load cell monitoring, total weight display, digital balancing).

Two POWERLINK ports

RS485 port (Modbus RTU/Laumas ASCII protocol)

2 logic inputs, 3 relay outputs

OIML R76:2006 approved, class III, 10000 div. 0.2 μV/VSI

Mounting on Omega/DIN rail for front/rear panel

4-channel A/D converter 24 bit (16000000 dots) 4.8 kHz

Display range 99999999
