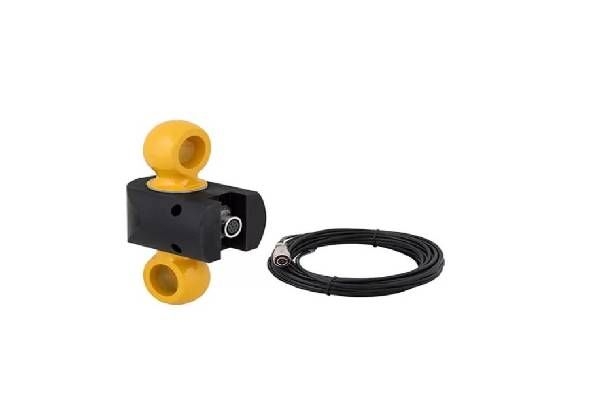

110-RH
110-RH
Material: Alloy Steel, Powder Coating
Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t
Material: Alloy steel with PVC Protection
Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
Full Scale Output: 2mV/V ± 0.25%
Safe Overload: 200% of full scale
Breaking Overload: 500% of full scale
IP Rating: IP67
NTEP 1:3000 Class III, Single Cell certified from 500kg-3t
NTEP 1:5000 Class III, Multiple Cell certified from 500kg-3t
NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
OIML MAA C3, Y=15 000 certified from 1t-10t
OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
CE and RoHS certified
