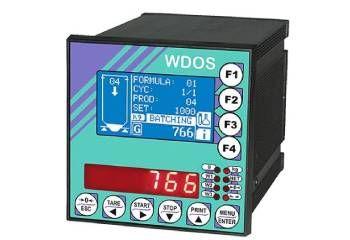

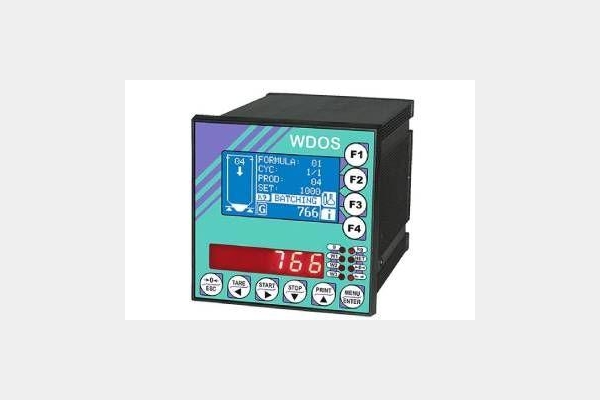

Laumas - WDOS

• Panel mounting option
• Multi-program: single loading/unloading and multiple product groups, maximum 99 formulas
• Backlit graphic LCD display, 60x32 mm, 128x64 pixels
• Six-digit red LED display, 10 mm height
• RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
• 3 logic inputs, 5 relay outputs
• OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
• OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
• Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via the Internet from a PC, smartphone or tablet, etc.
• A/D converter 24 bit (16,000,000 dots) 4.8 kHz
• Display range 999,999
• Product dimensions 96 x 96 x 130 mm.
• IP54 Protection class​
