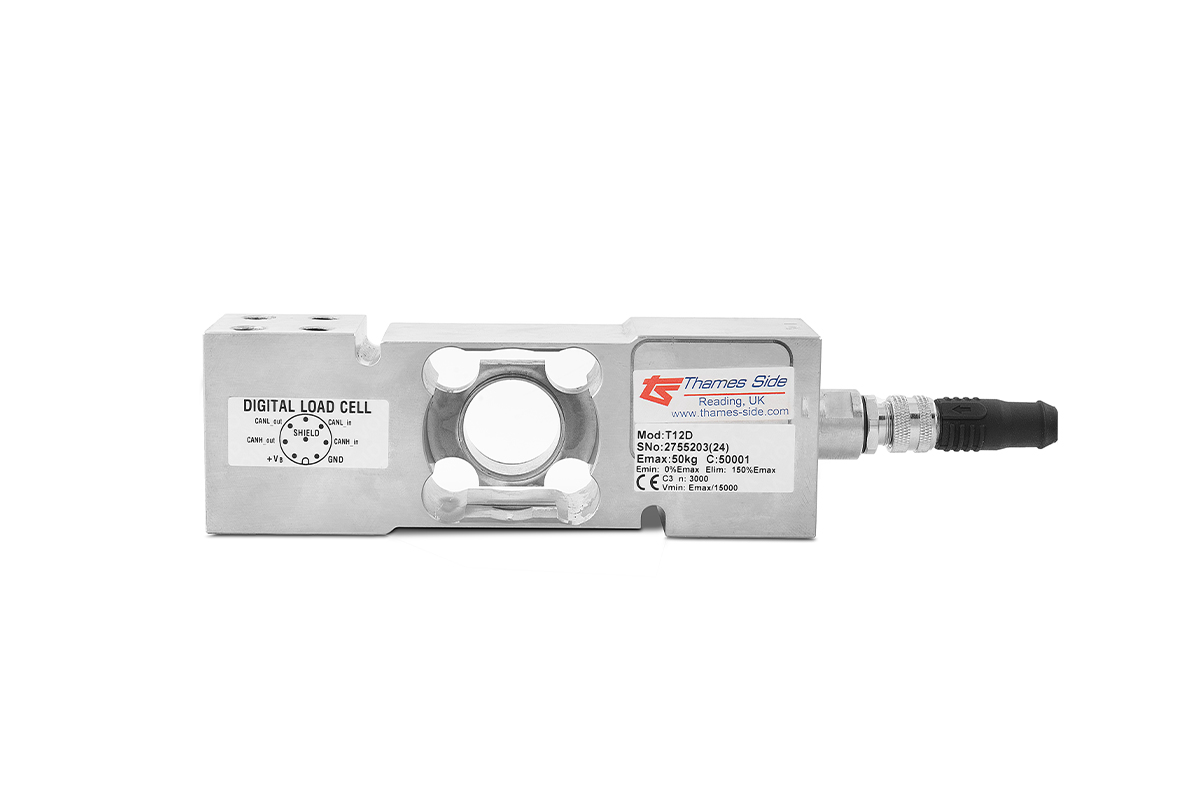

T12D

Its hermetically sealed and fully welded construction provides protection class IP68 and IP69K and is essential for use in applications such as the food and pharmaceutical industries that require regular flushing at high temperatures and pressures as defined by ISO 20653.

Thanks to the integrated 8-pin M12 x 1 male connector (Code A) the connection is versatile and allows customers to use their own interface to the load cell. Optionally, a connection connector and 5 m or 10 m long Polyurethane cable are available.

Key Features:

• Capacity range: 15-50 kg
• 1,000,000 count signal output
• Stainless steel, fully welded and hermetically sealed, IP68 and IP69K protected
• Output in weight units for direct connection to PLC (not mV/V)
• Fast measurement speed: 1600 readings per second and selectable digital filters
• Digital CAN bus interface with CANopen protocol
• Maximum platform size 600 mm x 600 mm (load cell centered under the platform)
• Optional 5 m or 10 m long 6-wire Polyurethane cable and connector (ordered separately)
• Typical applications:
• Weighing platforms up to 600 mm x 600 mm
• High speed bagging, filling and dosing systems
• High-speed checkweighers
• Multi-headed scales
• Packaging machines
• High speed sorting machines
